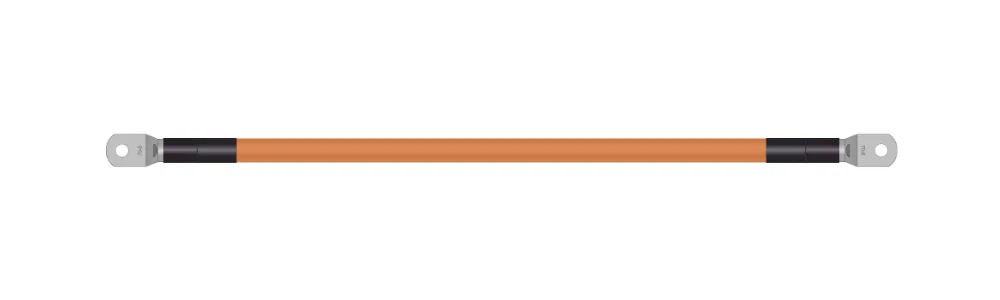

Weld 70mm² Custom Build - Customer's Product with price 23.89 ID vineVXWUKICGyEMfaxe160PU

SKU CW00-CPB
Cable Type - Choose Cable Type Negative
Length - Metres - Length - Negative Length Negative: 0.17 [CPC-CW00-OR-M] (44)
Connections - Left 8mm Eye [CPC-BL70-8] x1 (6.8)
Connections - Right 8mm Eye [CPC-BL70-8] x1 (6.8)
Heat Shrink - Left Black Standard [CPC-HSTBOX18-6B-CM] x4 (0.35)
Heat Shrink - Right Black Standard [CPC-HSTBOX18-6B-CM] x4 (0.35)
_configId vineVXWUKICGyEMfaxe160PU
_productUrl https://custompowercables.com.au/collections/custom-cables/products/cw00-cpb
weight 0.12
_cpb_frs_id 868279
_image https://app.thecustomproductbuilder.com/private-image/custom-product-builder-private/60424552641/images/orders/custom-power-cables-7367945355457-B0t0k9N15qBGgtP227H0gfBU.webp

Part #: CW00-CPB

Pack Qty: By the metre

Brand: Tycab

Nominal Area: 70mm²

Nominal O.D: 17.00mm

AMP Rating* two single cores: 240

Voltage Drop mV/Am at Max operating Temperature–Single Phase: 0.62

Voltage Drop mV/Am at Max operating Temperature–Three Phase: 0.59

Conductor: Flexible Class 6 Bunched OXYGEN FREE Plain Copper Wire to AS/NZS 1125

Conductor Qty & Diameter: 2240/0.2mm

Insulation (White): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808

Insulation Thickness:1.4mm

Sheath (Orange): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808

Sheath Thickness:1.5mm

Electrical Resistance at 20°C: 0.272 ohm/km

Mass: 72.34kg/100mmm

Maximum operating temperature: 75°C in normal Use OR 105°C where not subject to, or protected from, mechanical damage (refer AS/NZS 3008.1.1:2009)

*AMP Ratings are to AS/NZS 3008. Unenclosed-Spaced at 40°C (in air), 25°C (in ground). Refer AS/NZS 3008 for derating factors – For Welding AMP Ratings refer to AS/NZS 1995.
