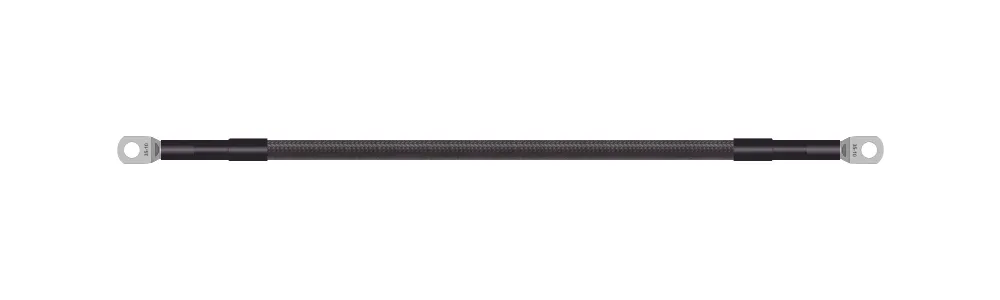

Weld 35mm² Custom Build - Customer's Product with price 40.31 ID HnNYpIiGWpA8eXmAL3NulfLu

SKU CW2-CPB
Cable Type - Choose Cable Type Negative
Length - Metres - Length - Negative Negative: 1 [CPC-CW2-OR-M] x1 (16.5)
Connections - Left 10mm Eye [CPC-BL35-10] x1 (5)
Connections - Right 10mm Eye [CPC-BL35-10] x1 (5)
Heat Shrink - Left Black Adhesive Lined [CPC-HSTDW19-6-CM] x4 (0.6)
Heat Shrink - Right Black Adhesive Lined [CPC-HSTDW19-6-CM] x4 (0.6)
Sleeving - Sleeving Braided Expandable [CPC-LV3372-M] x1 (4)
Sleeving - Install Install Fee [CPC-ASSEMBLY] x1 (5)
_configId HnNYpIiGWpA8eXmAL3NulfLu
_productUrl https://custompowercables.com.au/products/cw2-cpb
weight 0.61
_cpb_frs_id 959887
_image https://app.thecustomproductbuilder.com/private-image/custom-product-builder-private/60424552641/images/orders/custom-power-cables-7367941882049-90txD1atsoN5aSVDhQuEtCBu.webp

Part #: CW2-CPB

Pack Qty: By the metre

Brand: Tycab

Nominal Area: 35mm²

Nominal O.D: 13.10mm

AMP Rating* two single cores: 155

Voltage Drop mV/Am at Max operating Temperature–Single Phase: 1.29

Voltage Drop mV/Am at Max operating Temperature–Three Phase: 1.12

Conductor: Flexible Class 6 Bunched OXYGEN FREE Plain Copper Wire to AS/NZS 1125

Conductor Qty & Diameter: 1120/0.2mm

Insulation (White): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808

Insulation Thickness:1.2mm

Sheath (Orange): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808

Sheath Thickness:1.4mm

Electrical Resistance at 20°C: 0.554 ohm/km

Mass: 38.96 kg/100mmm

Maximum operating temperature: 75°C in normal Use OR 105°C where not subject to, or protected from, mechanical damage (refer AS/NZS 3008.1.1:2009)

*AMP Ratings are to AS/NZS 3008. Unenclosed-Spaced at 40°C (in air), 25°C (in ground). Refer AS/NZS 3008 for derating factors – For Welding AMP Ratings refer to AS/NZS 1995.
