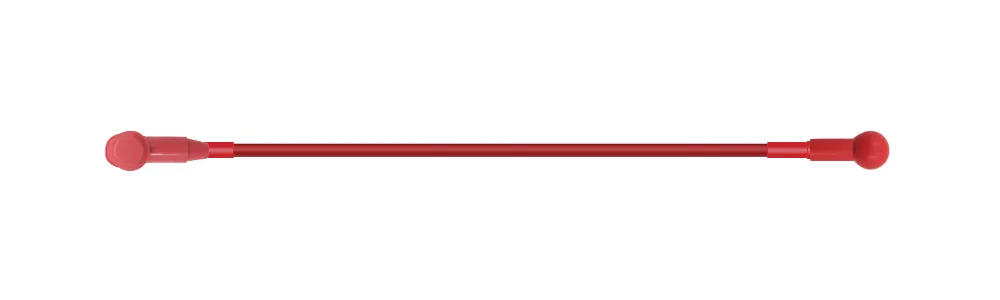

4 B&S Custom Battery Cables (20.26mm²) - Customer's Product with price 27.86 ID zKrEcCb0fBECdnXPM9O61JoZ

SKU: C4-CPB

4 B&S Custom Battery Cables (20.26mm²) - Customer's Product with price 27.86 ID zKrEcCb0fBECdnXPM9O61JoZ

$27.86

Design your own 4 B&S cable with the choice of:

Cable Type: Single Core or Black & Red Combo

Cable Length: Per metre (1.00) with 1cm increments (0.01)

Lugs, Anderson Connectors, Battery Terminals or Clamps

Heat Shrink

Insulators

Sleeving

and we will custom build it for you. (Each selection includes assembly fees)

Scroll for cable specifications...

How to Measure How to Design Ask about this product

Add to Wishlist

Description

SKU C4-CPB
Cable Type - Choose Cable Type Red
Length - Metres - Length - Red Red: 0.5 [CPC-C4-RD-M] (13)
Left Termination - Connections 10mm Eye [CPC-BL25-10] x1 (1.55)
Left Termination - Add Heat Shrink Red Adhesive Lined [CPC-HSTDW12-4R-CM] x4 (0.25)
Left Termination - Add Insulators Left Red Large [CPC-RB6-2R] x1 (4.4)
Right Termination - Connections 12mm Eye [CPC-BL25-12] x1 (1.55)
Right Termination - Add Heat Shrink Red Adhesive Lined [CPC-HSTDW12-4R-CM] x4 (0.25)
Right Termination - Add Insulators Right Red [CPC-RB3R] x1 (3.85)
Assembly Charges - Crimping Crimp x 2 [CPC-CRIMPING] x2 (4)
_configId zKrEcCb0fBECdnXPM9O61JoZ
_productUrl https://custompowercables.com.au/products/c4-cpb
weight 0.2
_cpb_frs_id 678702
_image https://app.thecustomproductbuilder.com/private-image/custom-product-builder-private/60424552641/images/orders/custom-power-cables-7367897317569-EooGd2oxu2HI77fk7DCw0HDV.webp

Specifications

AMP Rating at 30°C: 135 amp (JASO D609 derating factors apply)

Tycab Code: ABC128703

Nearest AWG: 4

Strand #/Size: 252/0.32

Nominal Area: 20.26mm²

Insulation Thickness: 1.1mm

Electrical Resistance at 20°C: 0.9 ohm/km

Nominal O.D.: 8.3mm

Mass (kg/100m): 22.4

Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125

Insulation: V90 degrees Celsius PVC to AS/NZS 3808
