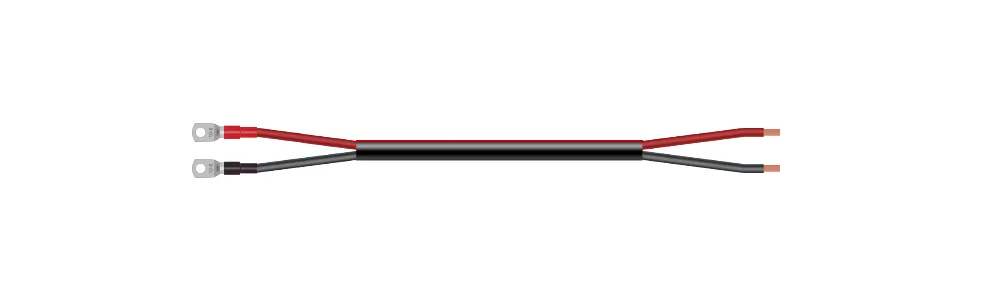

8 B&S Custom Battery Cables (7.71mm²) - Customer's Product with price 21.42 ID KuvY9uVvv8nXEvliU6mg_FSn

SKU C8-CPB
Cable Type - Choose Cable Type Twin Sheath [0] x1
Length - Metres - Length - Twin Twin Sheath: 0.4 [CPC-C2TS-8-M] (8.5)
Left Termination + - Connections + 6mm Eye [CPC-BL10-6] x1 (0.8)
Left Termination + - Add Heat Shrink Red Standard [CPC-HSTBOX9-3R-CM] x3 (0.07)
Left Termination - - Connections - 6mm Eye [CPC-BL10-6] x1 (0.8)
Left Termination - - Add Heat Shrink Black Standard [CPC-HSTBOX9-3B-CM] x3 (0.07)
Assembly Charges - Crimping Crimp x 4 [CPC-CRIMPING] x4 (4)
_configId KuvY9uVvv8nXEvliU6mg_FSn
_productUrl https://custompowercables.com.au/collections/custom-cables/products/c8-cpb
weight 0.109
_cpb_frs_id 763389
_image https://app.thecustomproductbuilder.com/private-image/custom-product-builder-private/60424552641/images/orders/custom-power-cables-7367940735169-omxQcIPALI0M49m6CyCW6E8v.webp



AMP Rating at  30°C: 74 amp (JASO D609 derating factors apply)

Tycab Code: ABC111203

Nearest AWG: 8

Strand #/Size: 96/0.32

Nominal Area: 7.71mm²

Insulation Thickness: 0.9mm

Electrical Resistance at 20°C: 2.4ohm/km

Nominal O.D.: 5.5mm

Mass (kg/100m): 9.3

Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125

Insulation: V90 degrees Celsius PVC to AS/NZS 3808
