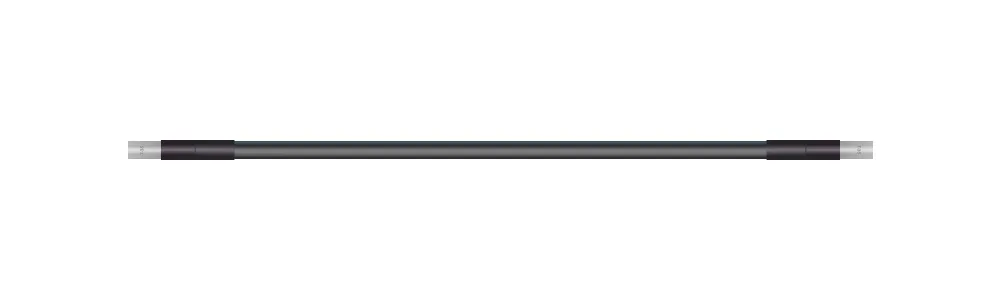

2 B&S Custom Battery Cables (32.07mm²) - Customer's Product with price 22.47 ID Mp7ejWtARot0kSjqN6He8Rkf

SKU: C2-CPB

2 B&S Custom Battery Cables (32.07mm²) - Customer's Product with price 22.47 ID Mp7ejWtARot0kSjqN6He8Rkf

$22.47

Design your own 2 B&S cable with the choice of:

Cable Type: Single Core or Black & Red Combo

Cable Length: Per metre (1.00) with 1cm increments (0.01)

Lugs, Anderson Connectors, Battery Terminals or Clamps

Heat Shrink

Insulators

Sleeving

and we will custom build it for you. (Each selection includes assembly fees)

Scroll for cable specifications...

How to Measure How to Design Ask about this product

Add to Wishlist

Description

SKU C2-CPB
Cable Type - Choose Cable Type Black
Length - Metres - Length -Black Black: 0.2 [CPC-C2-BK-M] (18.35)
Connections - Left Joiner [CPC-CCL35] x1 (7)
Connections - Right Joiner [CPC-CCL35] x1 (7)
Heat Shrink - Left Black Adhesive Lined [CPC-HSTDW19-6-CM] x4 (0.6)
Heat Shrink - Right Black Adhesive Lined [CPC-HSTDW19-6-CM] x4 (0.6)
_configId Mp7ejWtARot0kSjqN6He8Rkf
_productUrl https://custompowercables.com.au/products/c2-cpb
weight 0.156
_cpb_frs_id 540789
_image https://app.thecustomproductbuilder.com/private-image/custom-product-builder-private/60424552641/images/orders/custom-power-cables-7367817101505-lqPDwOCy60V0bcafnhL3RQEk.webp

Specifications

AMP Rating at 30°C: 188 amp (JASO D609 derating factors apply)

Tycab Code: ABC145503

Nearest AWG: 2

Strand #/Size: 399/0.32

Nominal Area: 32.07mm²

Insulation Thickness: 1.7mm

Electrical Resistance at 20°C: 0.6 ohm/km

Nominal O.D.: 11.3mm

Mass (kg/100m): 37.1

Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125

Insulation: V90 degrees Celsius PVC to AS/NZS 3808
